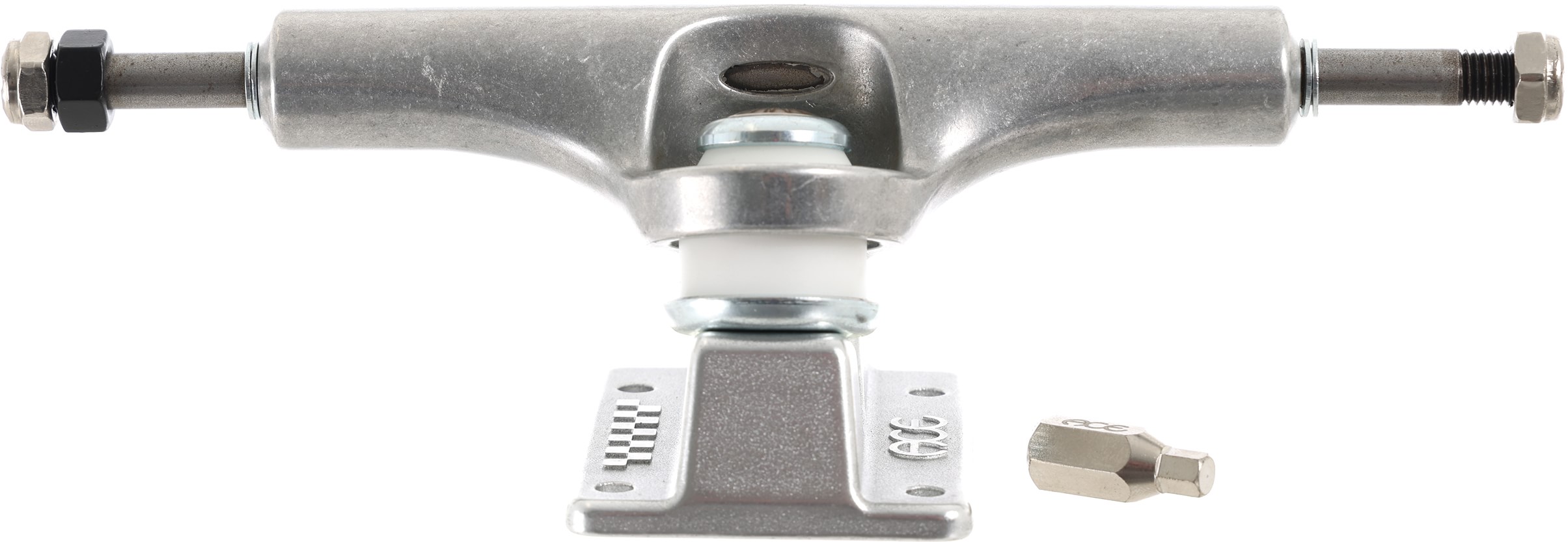

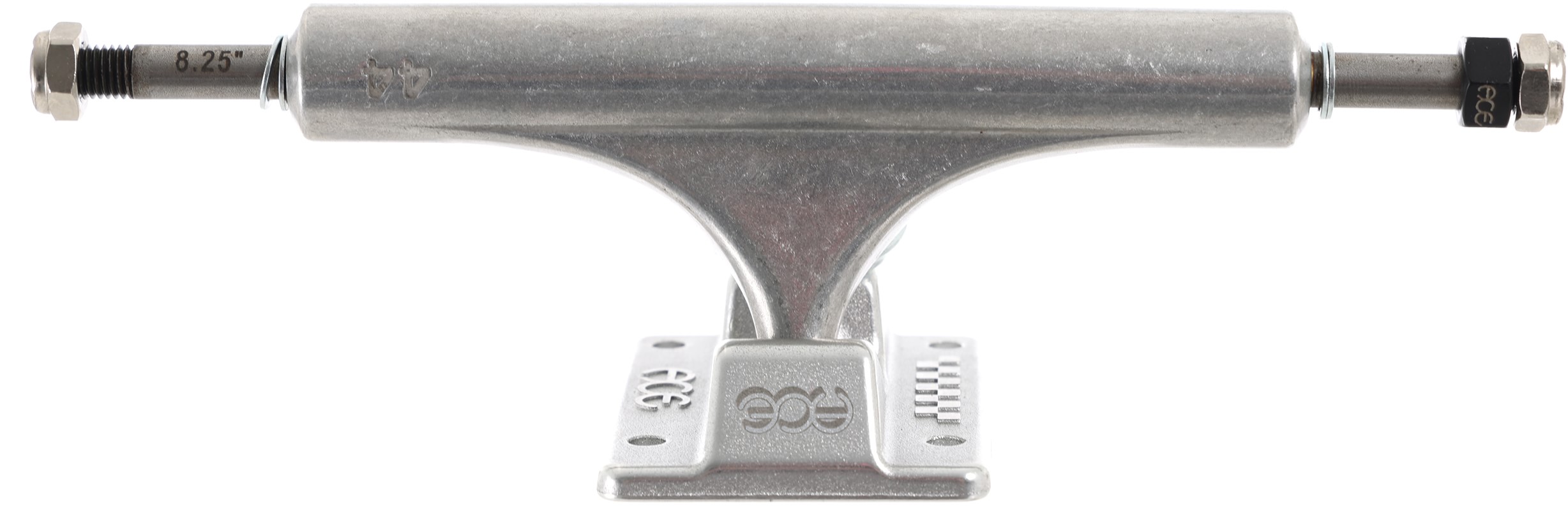

Ace AF-1 Inverted Hollow Skateboard Trucks

$89.95

Get 10% back in rewards on full-priced items. More info

Zoom

polished silver 44

Select Style: polished silver 44

Select Size: Size Chart

8.25 axle

8.5 axle

In Stock

FREE Shipping over $99

Live chat with an expert

Looking to build a custom complete?

Overview Features Specs

Overview

The Ace AF-1 Inverted Hollow Skateboard Trucks are changing the game with revolutionary technology, offering a lighter, more fluid ride. These trucks boast the best kingpin clearance to date, featuring a recessed washer for fluid turning and a revolutionary kingpin design that lets you grind farther and avoid hang-ups. With a strong, semi-hollow axle and a domed-out baseplate, they're also Ace's lightest truck yet. Experience an incredibly responsive feel and easy break-in time with the AF-1 Inverted.

Axle/Kingpin Style

Hollow Axle
Inverted Kingpin

Baseplate Style

Standard

Quantity

Set of 2 Trucks

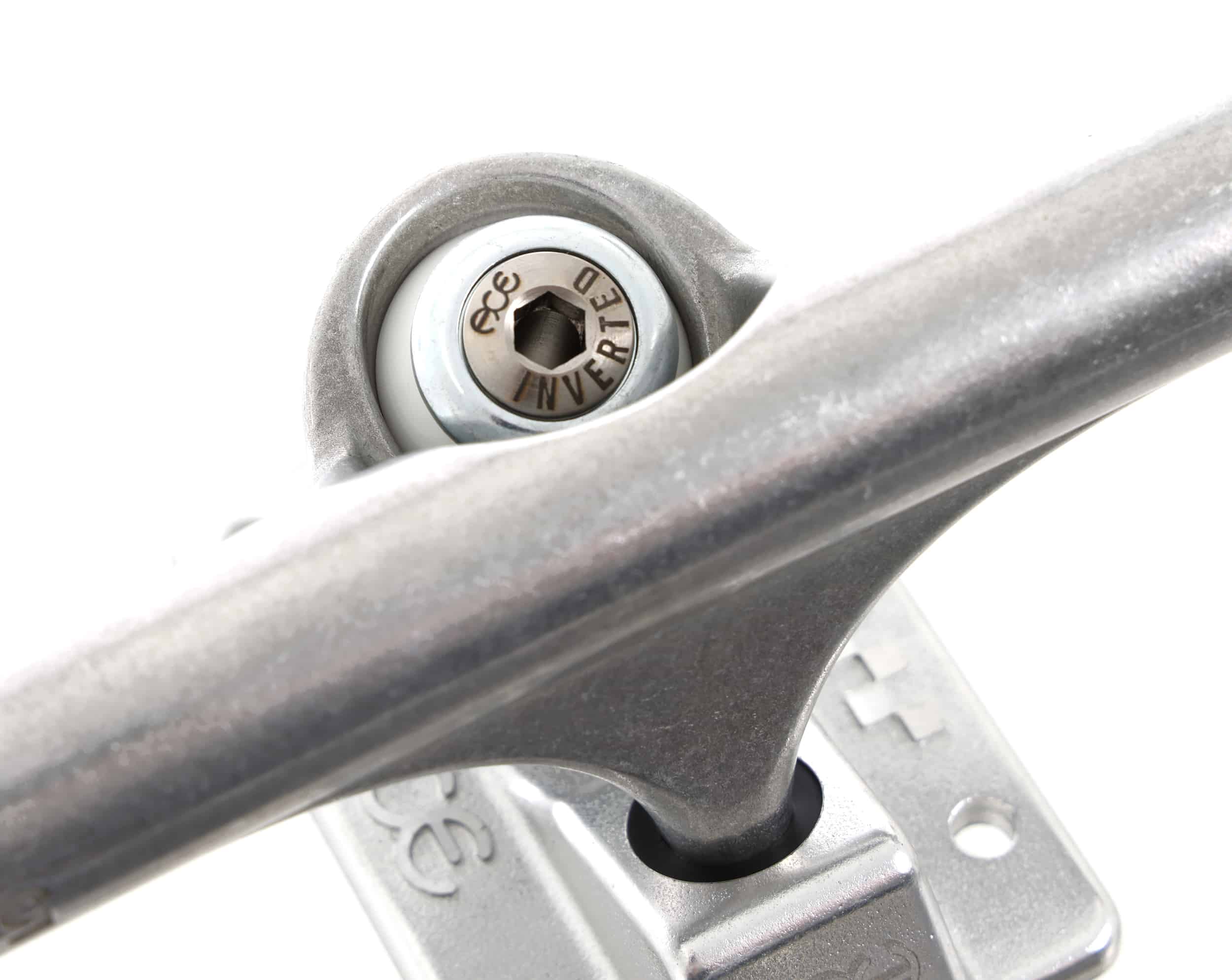

Revolutionary Kingpin Design

Channel-lock grooves clicks the kingpin into place, creating a revolutionary sleeve system.

Maximum Grind Clearance

Threadlock pro technology offers maximum grind clearance of 1.75" (44mm), the most of any truck on the market.

Suspension System

Comes with custom 9mm top bushing and newly designated recessed washer for superior turning, added clearance, and NO break-in time.

Included

Each truck includes bonus adaptor tool, 2 per set!. Place this magnetic adaptor in ANY skate tool, and you have an Inverted tool. The magnetic adaptor wont fall out minimizing risk of loss.

Details

Strong, semi-hollow axle to reduce weight.
Domed out recesses in baseplate for reduced weight.
Manufactured with high-quality AA 356.2 alloy using Ace's own proprietary casting method.
True T6 heat-treated baseplates and hangers.
SAE 4140 steel alloy axles, oversized to eliminate bearing wobble.
Patent pending rethreading axle nuts - no more damaged axle ends!
Durable Hand-poured 96a urethane pivot bushings for better response.
Refined suspension for a cleaner turn.
Top Bushing: 12mm tall | 94a hardness
Bottom Bushing: Bottom 14mm tall | 86a hardness

Features

Axle/Kingpin Style

Hollow Axle - Hollow axle trucks cut down on the materials used in the axle, so your trucks feel lighter, because they are lighter.

Inverted Kingpin - An inverted kingpin means the threads are in the trucks, meaning that even after prolonged grinding, you will always be able to tighten or loosen your trucks.

Non-Compatible Risers

Risers from the following brands are not compatible with the baseplates of these trucks.

Diamond, Girl, Independent, Loaded, Paris

Sizing Reference

Note - Every skate truck brand represents their sizing a little differently, so it's easy to get confused. Take a look at this graphic and then reference the size chart.

Specs

Size	8.25 axle	8.5 axle
Hanger (mm):	143.0	149.0
Board Range (in):	8.0 - 8.5	8.25 - 8.75
Height (mm):	53.0	53.0
Weight (g):	352.0	361.0
